702-XL Speaker and Amplifier Kit for Lower Fairings
Supplied 225 watt amp powers 7" XL Series 2 Ohm lower fairing speakers
XL Series Speakers are similar to Wild Boar Audio, But for ‘98-’13 bikes - Fits H-D bikes with VENTED-style lowers
Carbon Fiber Woofer Cones for incredible bass response
Studio Grade Crossover Parts for loud, clean sound
Oversized Vented Magnet controls heat and allows speaker to play LOUDER & LONGER
Amplfier features R.E.M.I.T. for excellent FM reception from a Class D amp
Kit includes adaptors to easily install speakers into glovebox opening
System fits bikes with "clone" (non OE) aftermarket vented lower fairings
Features new style injection molded ABS grills with metal mesh
Works with factory radio or popular aftermarket plug & play radios
Can be used to add lower speakers to a stock system
Can easily be added to Hogtunes Ultra Kits to create a 6 speaker, 6 channel system
All required hardware and plug & play wire harnesses are included - complete kit
5 Year Warranty on speakers / 3 Year Warranty on amplifier
Drag Specialties part # 4405-0976
*Hogtunes 2CHSP (Drag Specialties Part # 4405-0234) is required to mount the supplied amp if the supplied amp is the second amp in the system
Note: The REV 225-AA amplifier is a Class D design. It should be understood that ALL Class D amplifiers, regardless of brand, cause a reduction in FM reception. The REV 225-AA features a proprietary circuit design called R.E.M.I.T. (Reduced Electro Magnetic InterferenceTechnology) that Hogtunes believes gives the BEST FM reception available for any Class D Amplifier designed for a motorcycle.If you add a 2nd or 3rd model amplifier to your system, reduction of FM reception is increased and is considered normal.
Hogtunes understands that some riders prefer the cosmetics of in-fairing antennas, however it should be noted that NOTHING works as well as the factory antenna. If FM is an important part of your riding experience, we strongly advise against the use of any in fairing type antenna!
Bike Fitment
Primarily Designed For:
2005-2013 FLHTCU Ultra Classic
2009-2013 FLHTCUG Tri Glide Ultra
Also Fits:
2011-2013 FLTRU See Note 1
Any 1998-2013 FLH (batwing) Models with Ultra Style VENTED Fairing Lowers
2010-2013 FLTR Models with Ultra Style VENTED Fairing Lowers See Note 1
Note 1: Hogtunes RG2CH-AA (Drag Specialties Part # 4405-0486) is required to mount supplied amplifier in all Road Glide Models
Note 2: Vented Fairing lowers were introduced as a standard part starting with 2005 Ultra Classic, but were also used on 2004 CVO Electra Glide Classic (only)

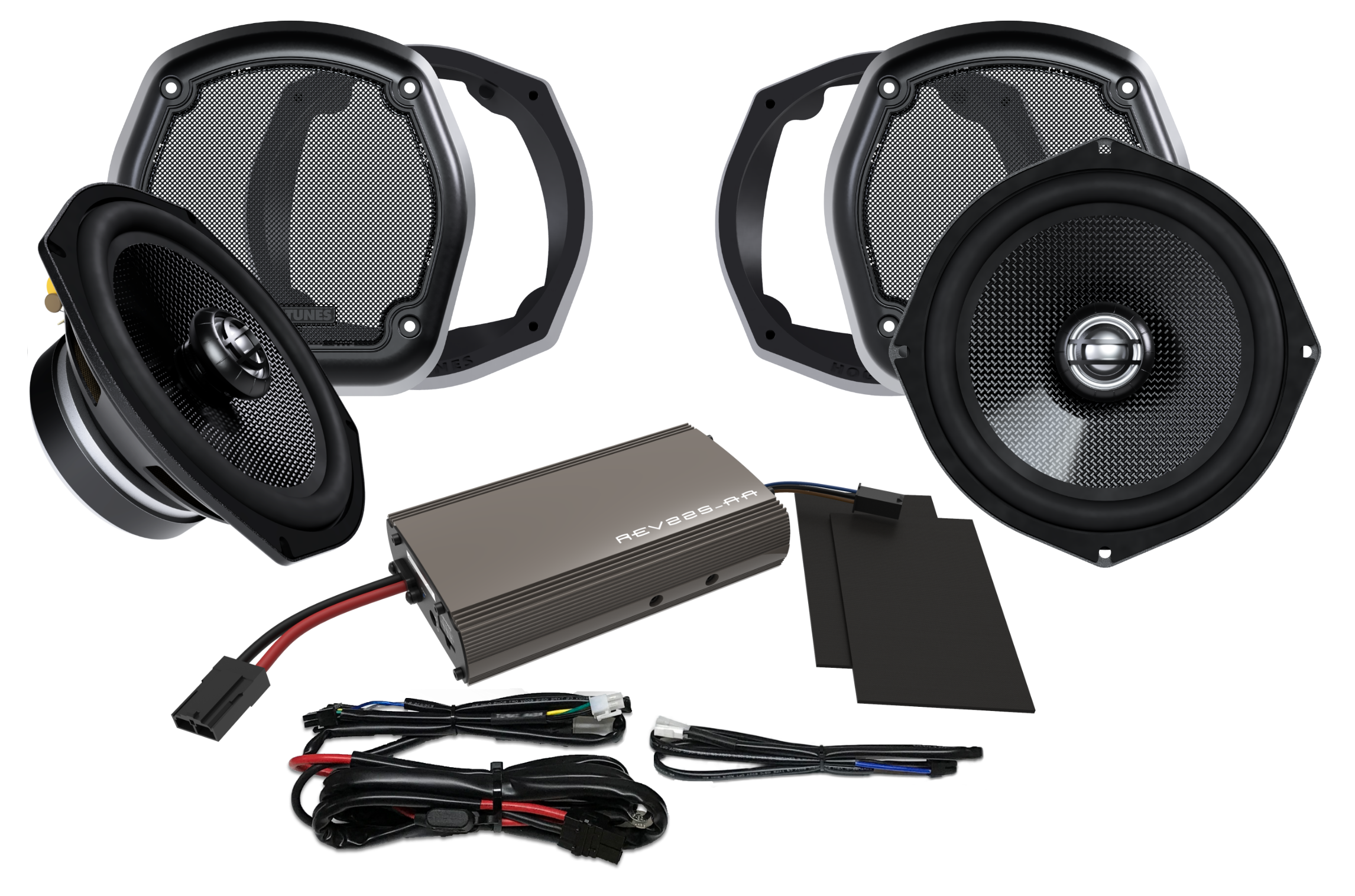

Included In Box
1 Pair of 702-XL 2 Ohm Speakers
1 REV 225-AA Amplifier
1 Complete Plug and Play Wire Harness
All Required Hardware To Complete The Installation*
1 Installation Manual
